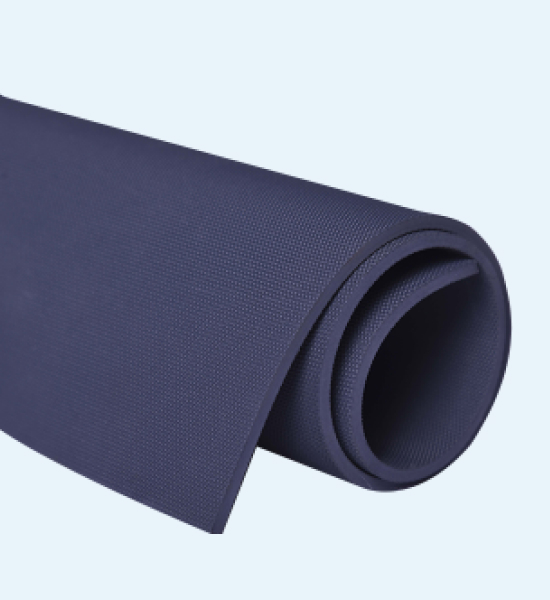

Fire - Resistant Thermal Insulation Sheeting

Fire - Resistant Thermal Insulation Sheeting

Our fire-resistant thermal insulation rubber sheeting with unique self-extinguishing properties, is designed for the protection of the equipment and machinery that operates in a fire-prone environment.

Standard Colors

Looking for a customized color ? Connect with us
Product Summary

Our fire-resistant thermal insulation sheeting helps resist fire propagation, reduces smoke & toxic emissions in the event of fire breakouts.

Our fire-resistant rubber sheeting serve a variety of applications, such as protective covering over thermally insulated surfaces for fire and weatherproofing purposes, as fire-resistant gaskets or skirting rubber in an underground mine conveyor line. It can also be used as fire-resistant rubber flooring and matting.

summary Fire-Resistant Thermal Insulation Sheeting
Get the edge

Features and Benefits

  • Excellent fire-resistant properties.

  • Superior resistance to heat, water, Ozone & UV.

  • Product complies with global RoHS and REACH standards.

  • Recommended operating temperature: 40°C (-40°F) to 100°C (212°F).

Standard parameters

Product specifications

MaterialSynthetic rubber composite
Standard thickness1mm (0.039") to 5mm (0.196")
Standard widthUp to 1200 mm (47.24")
Standard length5 m – 100 m (16.4 ft. or 328 ft.)
Surface finishTextured
PackagingIn roll form, the sheet is packed in HDPE sheet/liner & palletised.

Technical specifications


Technical Features
PropertiesTest Method UnitNominal Values
HardnessASTM D2240Shore A75 +/-5 Shore A
Tensile strengthASTM D412Mpa (Psi)Minimum 5 Mpa (725 Psi)
Elongation at breakASTM D412% Minimum 200 %
Limiting Oxygen
Index (LOI)
EN ISO 4589-1%Minimum 42 %
Ozone ResistantNo cracks at 40°C (104°F) of ozone concentration 50 pphm for 96 hours
UV ResistantNo visible discoloration and no cracks for 1000 hours under UV light
