Flexible Disposable Suction Canister Liner System
Flexible Disposable Suction Canister Liner System

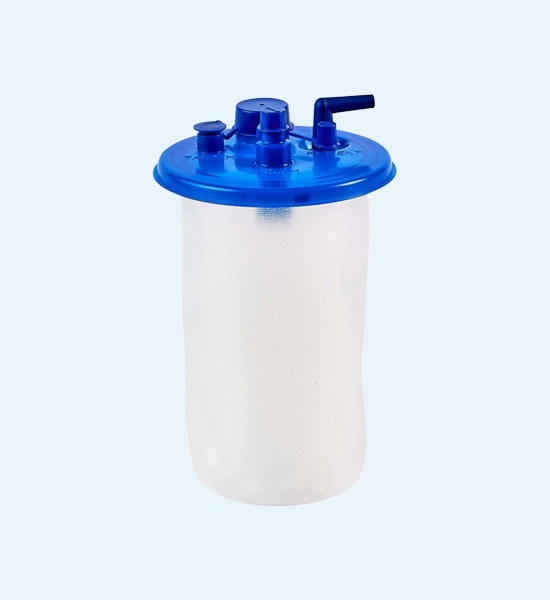

Our flexible disposable suction liner system is designed for safety, efficiency, and ease of use. Each liner arrives pre-attached to its lid, eliminating on-site assembly and reducing the risk of leaks, spills and exposure to infectious fluid waste.

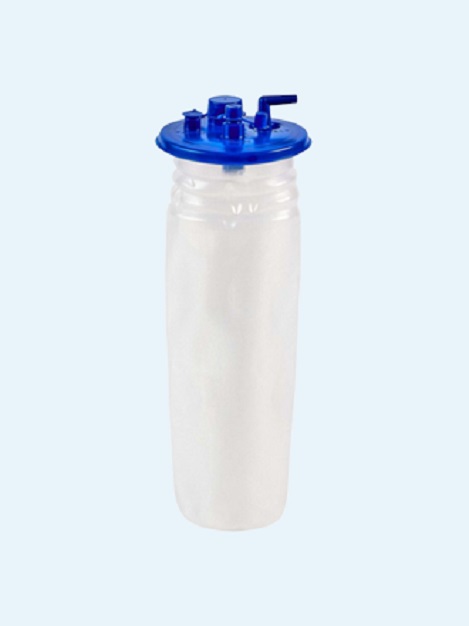

Product Summary
A permanently pre-sealed flexible liner system engineered to eliminate
assembly steps and maximize clinical safety during fluid collection and
disposal.
Our flexible disposable suction liner system is designed for safety, efficiency, and ease of use. Each liner arrives pre-attached to its lid, eliminating on-site assembly and reducing the risk of leaks, spills and exposure to infectious fluid waste.
Constructed from lightweight polymer film and used with a reusable outer canister, the system is up to 50% lighter than comparable rigid canisters, improving handling and reducing waste. Integrated safety features including a bacterial filter, one-way valve, and automatic shut-off protection help safeguard healthcare professionals throughout collection and disposal.
Tandem connectivity options support high-volume fluid management applications across a wide range of clinical settings.
Get the edge
Features and benefits
Pre-attached lid design eliminates assembly steps and ensures a secure, leak-free waste container system.
One-way patient port valve prevents fluid backflow, enhancing patient safety.
Built-in bacterial filter helps prevent aerosol contamination through the vacuum line.
Automatic shut-off protection stops overflow and safeguards vacuum equipment when full.
Large-bore suction port handles thick fluids, bone chips, and tissue particles without blockage.
Transparent flexible liner with clear markings enables easy, real-time fluid level monitoring.
Lightweight design (up to 50% lighter than rigid canisters) improves handling and reduces disposal costs.
Reusable outer canister compatibility provides strong support while reducing waste.
Compatible with standard mounting systems including brackets, wall mounts, roll stands and vacuum setups.
Tandem tube connection option allows multiple liners to connect for high-volume fluid collection.
Cost-effective single-use solution reduces cleaning needs, waste volume, and per-procedure expenses.
OEM & private label customization available for liner design, lid options, valves, and complete kits.
Standard parameters
Product specifications
| Liner Material | Flexible durable medical-grade polymer. |
| Outer Canister | Reusable rigid outer canister (polycarbonate or equivalent), multiple mounting configurations |
| Available Capacities | 1,000 cc | 1,500 cc| 3000 cc | custom volumes available on request |
| Lid Attachment | Permanently pre-attached to liner body - no assembly required |
| Valve Configuration | One-way valve (patient port) | Automatic shut-off valve (vacuum port) | Bacterial filter |
| Port Configuration | Large-bore patient port | Vacuum port | Accessory port | Orthopedic port (1,500 cc) |
| Tandem Connectivity | Proprietary tandem tube connection for series multi-liner high-volume configurations |
| Weight Advantage | Up to 50% lighter than equivalent-capacity rigid single-use canisters |
| Graduated Markings | Printed volume graduation on transparent liner body for real-time monitoring |
| Compatibility | Ring brackets | Wall mounts | D.I.S.S.(Diameter Index Safety System) direct-to-regulator | Roll stands | Manifolds |
| Sterility | Non-sterile supplied as single-use disposable liner with permanently attached lid |
| Regulatory | Manufactured in compliance with ISO 13485 and applicable FDA 21 CFR quality requirements (OEM configuration) |
| Custom Options | Liner geometry | Capacity | Lid design | Valve configuration | Label / branding | Kit format |
Private Label Services
We offer OEM and private label services with customized packaging, while collaborating with our partners to support their brands globally.
