Self-Amalgamating Insulation Tapes
Self-Amalgamating Insulation Tapes
Our insulation tapes are designed to perform under the harshest environments, extreme temperatures, and a wide range of voltage lines. With excellent electrical insulation properties, our tapes are also resistant to water, ultraviolet radiation, and the natural weathering process.
Product summary
Our self-amalgamating insulation rubber tapes are specially formulated to provide best protection for a range of applications.

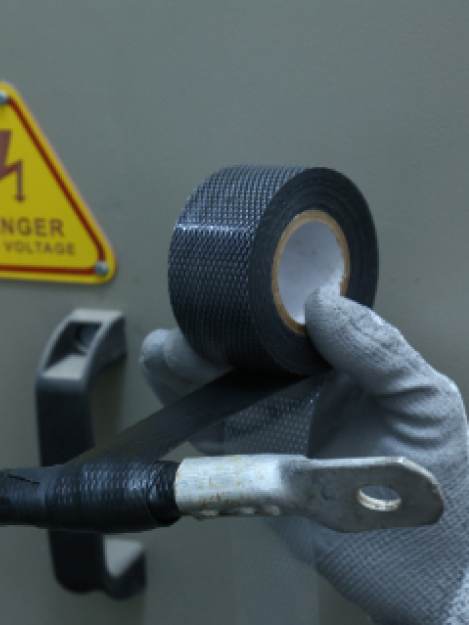

Our self-amalgamating insulation rubber tapes are ideal for insulating, splicing, jointing, padding, sealing, shaping, jacket repairing, bundling & harnessing power cables, bus bars and other electrical components.
These tapes, when applied under tension, provides a void-free homogeneous insulation build-up without applying external heat or pressure.
Get the edge
Features and benefits
Provide excellent electrical insulating and physical properties
Superior resistance to water, aging, UV radiation, weathering & ozone
High stretch properties for effective application
Easy to remove from the insulated surface, leaves no traces
Comes with a special plastic liner for better stability while storage
Operating temperature: -40°C (-40°F) to 90°C (194°F)
Product complies with global RoHS and REACH standards
Standard parameters
Product specifications
| Material | Ethylene propylene-based rubber composite |
| Surface finish | Textured surface on both side |
| Standard sizes | 19.05 mm (0.75") x 9.15 m (30 ft.)25.40 mm (1.00") x 9.15 m (30 ft.)38.10 mm (1.50") x 9.15 m (30 ft.)50.80 mm (2.00") x 9.15 m (30 ft.) Customized sizes available |
| Color | Black |
| Core | Paper core, 38 mm(1.50") inner diameter |
| Packaging | Individually shrink-wrapped rolls packed in carton |
| Shelf life | 24 months from manufacturing date if stored in recommended conditions |
